Homework 1 Problem 1

1. 3 DOF manipulator dynamics

abbreviations

• $c1 = \cos(\theta_1)$ | $c2 = \cos(\theta_2)$ | $c3 = \cos(\theta_3)$
• $s_{12} = \sin(\theta_1 + \theta_2)$
• $c_{123} = \cos(\theta_1 + \theta_2 + \theta_3)$
• $c_{23} = \cos(\theta_2 + \theta_3)$

Translational kinetic energy

link 1:

$$\begin{align*} &x_{c1} = \frac{l_1}{2}c_1 ,\space y_{c1} = \frac{l_1}{2}s_1 \\ &v_{c1}^2 = (\frac{l_1}{2})^2\dot{\theta}_1^2 \end{align*}$$

kinetic energy

$$\frac{1}{2}m_1v_{c1}^2 = \frac{1}{8} m_1 l_1\dot{\theta}_1^2$$

link 2:

$$\begin{align*} &x_{c2} = l_1c_1 + \frac{l_2}{2}c_{12} ,\space y_{c2} = l_1s_1 + \frac{l_2}{2}s_{12} \\ &v_{c2}^2 = l_1^2\dot{\theta}_1^2 + (\frac{l_2}{2})^2(\dot{\theta}_1+\dot{\theta}_2)^2 + l_1l_2\dot{\theta}_1(\dot{\theta}_1+\dot{\theta}_2)c2 \end{align*}$$

kinetic energy

$$\frac{1}{2}m_2v_{c2}^2 = \frac{1}{2}m_2l_1^2\dot{\theta}_1^2 + \frac{1}{8}m_2l_2^2(\dot{\theta}_1+\dot{\theta}_2)^2 + \frac{1}{2}m_2l_1l_2\dot{\theta}_1(\dot{\theta}_1+\dot{\theta}_2)c2$$

link 3:

$$\begin{align*} x_{c3} &= l_1c_1 + l_2c_{12} + \frac{l_3}{2}c_{123} \\ y_{c3} &= l_1s_1 + l_2s_{12} + \frac{l_3}{2}s_{123} \\ v_{c3}^2 &= \dot{x}_{c3}^2 + \dot{y}_{c3}^2 \end{align*}$$ $$v_{c3}^2 = l_1^2 \dot{q}_1^2 + l_2^2 \dot{q}_{12}^2 + (\frac{l_3}{2})^2 \dot{q}_{123}^2 + 2 l_1 l_2 \dot{q}_1 \dot{q}_{12} c_2 + l_2 l_3 \dot{q}_{12} \dot{q}_{123} c_3 + l_1 l_3 \dot{q}_1 \dot{q}_{123} c_{23}$$

kinetic energy

$$\frac{1}{2}m_3v_{c3}^2 = \frac{1}{2}m_3l_1^2 \dot{q}_1^2 + \frac{1}{2}m_3l_2^2 \dot{q}_{12}^2 + \frac{1}{8}m_3l_3^2 \dot{q}_{123}^2 \\ + m_3 l_1 l_2 \dot{q}_1 \dot{q}_{12} c_2 + \frac{1}{2}m_3 l_2 l_3 \dot{q}_{12} \dot{q}_{123} c_3 + \frac{1}{2}m_3 l_1 l_3 \dot{q}_1 \dot{q}_{123} c_{23}$$

Rotational kinetic energy

Angular velocity: $\omega_1 = \dot{\theta}_1, \quad \omega_2 = \dot{\theta}_1 + \dot{\theta}_2, \quad \omega_3 = \dot{\theta}_1 + \dot{\theta}_2 + \dot{\theta}_3$

$$I = \frac{1}{12}ml^2$$

link 1:

$$\frac{1}{2} I_1 \dot{\theta}_1^2 = \frac{1}{24} m_1 l_1^2 \dot{\theta}_1^2$$

link 2:

$$\frac{1}{2} I_2 (\dot{\theta}_1^2 + \dot{\theta}_2^2 + 2\dot{\theta}_1\dot{\theta}_2)$$

link 3:

$$\frac{1}{2} I_3 (\dot{\theta}_1^2 + \dot{\theta}_2^2 + \dot{\theta}_3^2 + 2\dot{\theta}_1\dot{\theta}_2 + 2\dot{\theta}_2\dot{\theta}_3 + 2\dot{\theta}_1\dot{\theta}_3)$$

kinetic energy

$$K_1 = \left( \frac{1}{8} m_1 l_1^2 + \frac{1}{24} m_1 l_1^2 \right) \dot{\theta}_1^2 = \mathbf{\frac{1}{6} m_1 l_1^2 \dot{\theta}_1^2}$$ $$K_2 = \frac{1}{2} m_2 l_1^2 \dot{\theta}_1^2 + \mathbf{\frac{1}{6} m_2 l_2^2 (\dot{\theta}_1 + \dot{\theta}_2)^2} + \frac{1}{2} m_2 l_1 l_2 \dot{\theta}_1 (\dot{\theta}_1 + \dot{\theta}_2) \cos\theta_2$$ $$\begin{aligned} K_3 = & \frac{1}{2} m_3 l_1^2 \dot{\theta}_1^2 + \frac{1}{2} m_3 l_2^2 (\dot{\theta}_1 + \dot{\theta}_2)^2 + \mathbf{\frac{1}{6} m_3 l_3^2 (\dot{\theta}_1 + \dot{\theta}_2 + \dot{\theta}_3)^2} \\ & + m_3 l_1 l_2 \dot{\theta}_1 (\dot{\theta}_1 + \dot{\theta}_2) \cos\theta_2 \\ & + \frac{1}{2} m_3 l_2 l_3 (\dot{\theta}_1 + \dot{\theta}_2) (\dot{\theta}_1 + \dot{\theta}_2 + \dot{\theta}_3) \cos\theta_3 \\ & + \frac{1}{2} m_3 l_1 l_3 \dot{\theta}_1 (\dot{\theta}_1 + \dot{\theta}_2 + \dot{\theta}_3) \cos(\theta_2 + \theta_3) \end{aligned}$$

total kinetic energy K

$$K = D_1 \dot{q}_1^2 + D_2 \dot{q}_{12}^2 + D_3 \dot{q}_{123}^2 + D_{12} c_2 \dot{q}_1 \dot{q}_{12} + D_{23} c_3 \dot{q}_{12} \dot{q}_{123} + D_{13} c_{23} \dot{q}_1 \dot{q}_{123}$$

where,

$$\begin{align*} D_1 &= (\frac{1}{6}m_1 + \frac{1}{2}m_2 + \frac{1}{2}m_3)l_1^2 \\ D_2 &= (\frac{1}{6}m_2 + \frac{1}{2}m_3)l_2^2 \\ D_3 &= \frac{1}{6}m_3 l_3^2 \\ D_{12} &= (\frac{1}{2}m_2 + m_3)l_1 l_2 \\ D_{23} &= \frac{1}{2}m_3 l_2 l_3 \\ D_{13} &= \frac{1}{2}m_3 l_1 l_3 \end{align*}$$

Potential Energy

$$P = \underbrace{\frac{1}{2} m_1 g l_1 s_1}_{P_1} + \underbrace{m_2 g (l_1 s_1 + \frac{1}{2} l_2 s_{12})}_{P_2} + \underbrace{m_3 g (l_1 s_1 + l_2 s_{12} + \frac{1}{2} l_3 s_{123})}_{P_3}$$

Euler-Lagrange Equation

$L = K - P$ By using the partial differential equations:

$$\tau_k = \frac{d}{dt}\left(\frac{\partial L}{\partial \dot{\theta}_k}\right) - \frac{\partial L}{\partial \theta_k} \quad (k = 1, 2, 3)$$

$\tau_3$:

$$\frac{\partial K}{\partial \dot{\theta}_3} = \frac{\partial K}{\partial \dot{q}_{123}} = 2 D_3 \dot{q}_{123} + D_{23} c_3 \dot{q}_{12} + D_{13} c_{23} \dot{q}_1$$ $$\frac{d}{dt}\left(\frac{\partial K}{\partial \dot{\theta}_3}\right) = \underbrace{2 D_3 \ddot{q}_{123} + D_{23} c_3 \ddot{q}_{12} + D_{13} c_{23} \ddot{q}_1}_{\text{angular velocity}} \underbrace{- D_{23} s_3 \dot{\theta}_3 \dot{q}_{12} - D_{13} s_{23} (\dot{\theta}_2 + \dot{\theta}_3) \dot{q}_1}_{\text{v squared}}$$ $$-\frac{\partial K}{\partial \theta_3} = -(- D_{23} s_3 \dot{q}_{12} \dot{q}_{123} - D_{13} s_{23} \dot{q}_1 \dot{q}_{123}) = + D_{23} s_3 \dot{q}_{12} \dot{q}_{123} + D_{13} s_{23} \dot{q}_1 \dot{q}_{123}$$ $$\tau_3 = 2 D_3 \ddot{q}_{123} + D_{23} c_3 \ddot{q}_{12} + D_{13} c_{23} \ddot{q}_1 + D_{23} s_3 \dot{q}_{12}^2 + D_{13} s_{23} \dot{q}_1^2 + G_3$$

where,

$$G_3 = \frac{1}{2}m_3 g l_3 c_{123}$$

$\tau_2$:

$$\frac{\partial K}{\partial \dot{\theta}_2} = \frac{\partial K}{\partial \dot{q}_{12}} + \frac{\partial K}{\partial \dot{q}_{123}}$$ $$\frac{\partial K}{\partial \dot{\theta}_2} = (2 D_2 + D_{23} c_3) \dot{q}_{12} + (2 D_3 + D_{23} c_3) \dot{q}_{123} + (D_{12} c_2 + D_{13} c_{23}) \dot{q}_1$$ $$\frac{d}{dt}\left(\frac{\partial K}{\partial \dot{\theta}_2}\right) = (2 D_2 + D_{23} c_3) \ddot{q}_{12} + (2 D_3 + D_{23} c_3) \ddot{q}_{123} + (D_{12} c_2 + D_{13} c_{23}) \ddot{q}_1 \\ - D_{23} s_3 \dot{\theta}_3 \dot{q}_{12} - D_{23} s_3 \dot{\theta}_3 \dot{q}_{123} - D_{12} s_2 \dot{\theta}_2 \dot{q}_1 - D_{13} s_{23} (\dot{\theta}_2 + \dot{\theta}_3) \dot{q}_1$$ $$-\frac{\partial K}{\partial \theta_2} = -(- D_{12} s_2 \dot{q}_1 \dot{q}_{12} - D_{13} s_{23} \dot{q}_1 \dot{q}_{123}) = + D_{12} s_2 \dot{q}_1 \dot{q}_{12} + D_{13} s_{23} \dot{q}_1 \dot{q}_{123}$$ $$\tau_2 = (2 D_2 + D_{23} c_3) \ddot{q}_{12} + (2 D_3 + D_{23} c_3) \ddot{q}_{123} + (D_{12} c_2 + D_{13} c_{23}) \ddot{q}_1 \\ + D_{12} s_2 \dot{q}_1^2 + D_{13} s_{23} \dot{q}_1^2 - D_{23} s_3 (2 \dot{q}_{12} \dot{\theta}_3 + \dot{\theta}_3^2) + G_2$$

where,

$$G_2 = (m_2 \frac{l_2}{2} + m_3 l_2)g c_{12} + \frac{1}{2}m_3 g l_3 c_{123}$$

$\tau_1$:

$$\frac{\partial K}{\partial \dot{\theta}_1} = \frac{\partial K}{\partial \dot{q}_1} + \frac{\partial K}{\partial \dot{q}_{12}} + \frac{\partial K}{\partial \dot{q}_{123}}$$ $$\begin{aligned} \tau_1 = & \left[ (2D_1 + 2D_2 + 2D_3) + 2D_{12}c_2 + 2D_{23}c_3 + 2D_{13}c_{23} \right] \ddot{\theta}_1 \\ & + \left[ (2D_2 + 2D_3) + D_{12}c_2 + 2D_{23}c_3 + D_{13}c_{23} \right] \ddot{\theta}_2 \\ & + \left[ 2D_3 + D_{23}c_3 + D_{13}c_{23} \right] \ddot{\theta}_3 \\ & - D_{12} s_2 (2\dot{q}_1 \dot{\theta}_2 + \dot{\theta}_2^2) - D_{23} s_3 (2\dot{q}_{12} \dot{\theta}_3 + \dot{\theta}_3^2) - D_{13} s_{23} \left[ 2\dot{q}_1 (\dot{\theta}_2+\dot{\theta}_3) + (\dot{\theta}_2+\dot{\theta}_3)^2 \right] \\ & + G_1 \end{aligned}$$

Mess/Inertia Matrix

The inertia matrix is symmetric:

$$M(\theta) = \begin{bmatrix} M_{11} & M_{12} & M_{13} \\ M_{21} & M_{22} & M_{23} \\ M_{31} & M_{32} & M_{33} \end{bmatrix}$$ $$M_{11} = 2D_1 + 2D_2 + 2D_3 + 2D_{12} \cos\theta_2 + 2D_{23} \cos\theta_3 + 2D_{13} \cos(\theta_2+\theta_3)$$ $$M_{12} = 2D_2 + 2D_3 + D_{12} \cos\theta_2 + 2D_{23} \cos\theta_3 + D_{13} \cos(\theta_2+\theta_3)$$ $$M_{13} = 2D_3 + D_{23} \cos\theta_3 + D_{13} \cos(\theta_2+\theta_3)$$ $$M_{22} = 2D_2 + 2D_3 + 2D_{23} \cos\theta_3$$ $$M_{23} = 2D_3 + D_{23} \cos\theta_3$$ $$M_{33} = 2D_3$$

Centrifugal force and Coriolis force vectors

$$V(\theta, \dot{\theta}) = \begin{bmatrix} V_1 \\ V_2 \\ V_3 \end{bmatrix}$$ $$V_1 = - D_{12} \sin\theta_2 (2\dot{q}_1 \dot{\theta}_2 + \dot{\theta}_2^2) - D_{23} \sin\theta_3 (2\dot{q}_{12} \dot{\theta}_3 + \dot{\theta}_3^2) \\ - D_{13} \sin(\theta_2+\theta_3) \left[ 2\dot{q}_1 (\dot{\theta}_2+\dot{\theta}_3) + (\dot{\theta}_2+\dot{\theta}_3)^2 \right]$$ $$V_2 = D_{12} \sin\theta_2 \dot{q}_1^2 + D_{13} \sin(\theta_2+\theta_3) \dot{q}_1^2 - D_{23} \sin\theta_3 (2 \dot{q}_{12} \dot{\theta}_3 + \dot{\theta}_3^2)$$ $$V_3 = D_{23} \sin\theta_3 \dot{q}_{12}^2 + D_{13} \sin(\theta_2+\theta_3) \dot{q}_1^2$$

Gravity vector

$$G(\theta) = \begin{bmatrix} G_1 \\ G_2 \\ G_3 \end{bmatrix}$$ $$G_1 = (\frac{1}{2}m_1 + m_2 + m_3)g l_1 c_{1} + (\frac{1}{2}m_2 + m_3)g l_2 c_{12} + \frac{1}{2}m_3 g l_3 c_{123}$$ $$G_2 = (\frac{1}{2}m_2 + m_3)g l_2 c_{12} + \frac{1}{2}m_3 g l_3 c_{123}$$ $$G_3 = \frac{1}{2}m_3 g l_3 c_{123}$$

2. Task-Space PD Control with Gravity Compensation

$m_1=m_2=m_3=1 kg$ and $l_1=l_2=l_3=0.3 m$ so that:

Current End-Effector Position

$$x = l_1c_{1} + l_2c_{12} + l_3c_{123}$$ $$y = l_1s_{1} + l_2s_{12} + l_3s_{123}$$

---

Manipulator Jacobian

$$J = \begin{bmatrix} -l_1s_{1} - l_2s_{12} - l_3s_{123} & -l_2s_{12} - l_3s_{123} & -l_3s_{123} \\ l_1c_{1} + l_2c_{12} + l_3c_{123} & l_2c_{12} + l_3c_{123} & l_3c_{123} \end{bmatrix}$$

---

Task-Space Velocity

$$\dot{\mathbf{x}} = J\dot{\mathbf{q}}$$

---

Task-Space PD Control

Position error:

$$\mathbf{e} = \begin{bmatrix} x_d \\ y_d \end{bmatrix} - \begin{bmatrix} x \\ y \end{bmatrix}$$

Velocity error:

$$\dot{\mathbf{e}} = \begin{bmatrix} \dot{x}_d \\ \dot{y}_d \end{bmatrix} - \dot{\mathbf{x}}$$

Control force:

$$\mathbf{F} = K_p \mathbf{e} + K_d \dot{\mathbf{e}}$$ $$M(q)\ddot{q} + C(q,\dot{q})\dot{q} + F\dot{q} + g(q) = \tau$$ $$\tau = J^{T}\mathbf{F} + F\dot{q} + g(q)$$ $$\ddot{\mathbf{q}} = M^{-1} \left( J^{T}\mathbf{F} - \mathbf{V} \right)$$

where:

• $M$ : manipulator inertia matrix
• $J$ : manipulator Jacobian
• $\mathbf{F}$ : task-space control force
• $\mathbf{V}$ : gravity / nonlinear dynamics term
• $\ddot{\mathbf{q}}$ : joint acceleration vector

Code implementation

function [ddq,x,y] = pd_gravity(q, dq, tosim, t)
% parameters
m1 = tosim(1);
m2 = tosim(2);
m3 = tosim(3);
l1 = tosim(4);
l2 = tosim(5);
l3 = tosim(6);
xc = tosim(7);
yc = tosim(8);
r  = tosim(9);
w  = tosim(10);
kp  = tosim(11);
% task-space gains, 2x2
Kp = kp*eye(2);
Kd = 2*sqrt(kp)*eye(2);

th1 = q(1);
th2 = q(2);
th3 = q(3);

dth1 = dq(1);
dth2 = dq(2);
dth3 = dq(3);

dq1  = dth1;
dq12 = dth1 + dth2;

% desired end-effector trajectory
xd  = xc + r*cos(w*t);
yd  = yc + r*sin(w*t);

dxd = -r*w*sin(w*t);
dyd =  r*w*cos(w*t);

% current end-effector position
x = l1*cos(th1) + l2*cos(th1+th2) + l3*cos(th1+th2+th3);
y = l1*sin(th1) + l2*sin(th1+th2) + l3*sin(th1+th2+th3);

% manipulator Jacobian
J = [-l1*sin(th1)-l2*sin(th1+th2)-l3*sin(th1+th2+th3), ...
     -l2*sin(th1+th2)-l3*sin(th1+th2+th3), ...
     -l3*sin(th1+th2+th3);

      l1*cos(th1)+l2*cos(th1+th2)+l3*cos(th1+th2+th3), ...
      l2*cos(th1+th2)+l3*cos(th1+th2+th3), ...
      l3*cos(th1+th2+th3)];

% current task-space velocity
dxy = J*dq;

% task-space PD
e  = [xd; yd] - [x; y];
de = [dxd; dyd] - dxy;

F = Kp*e + Kd*de;

% Dynamics parameters
D1  = m1*l1^2/6 + (m2 + m3)*l1^2/2;
D2  = m2*l2^2/6 + m3*l2^2/2;
D3  = m3*l3^2/6;

D12 = (m2/2 + m3)*l1*l2;
D23 = m3*l2*l3/2;
D13 = m3*l1*l3/2;

c2  = cos(th2);
c3  = cos(th3);
c23 = cos(th2 + th3);

s2  = sin(th2);
s3  = sin(th3);
s23 = sin(th2 + th3);

M11 = 2*D1 + 2*D2 + 2*D3 ...
      + 2*D12*c2 + 2*D23*c3 + 2*D13*c23;

M12 = 2*D2 + 2*D3 ...
      + D12*c2 + 2*D23*c3 + D13*c23;

M13 = 2*D3 + D23*c3 + D13*c23;

M22 = 2*D2 + 2*D3 + 2*D23*c3;
M23 = 2*D3 + D23*c3;
M33 = 2*D3;

M = [M11 M12 M13;
     M12 M22 M23;
     M13 M23 M33];

V1 = -D12*s2*(2*dq1*dth2 + dth2^2) ...
     -D23*s3*(2*dq12*dth3 + dth3^2) ...
     -D13*s23*(2*dq1*(dth2 + dth3) + (dth2 + dth3)^2);

V2 = D12*s2*dq1^2 ...
     + D13*s23*dq1^2 ...
     - D23*s3*(2*dq12*dth3 + dth3^2);

V3 = D23*s3*dq12^2 ...
     + D13*s23*dq1^2;

V = [V1; V2; V3];

% task-space PD with gravity compensation
ddq = M \ (J' * F - V);

end

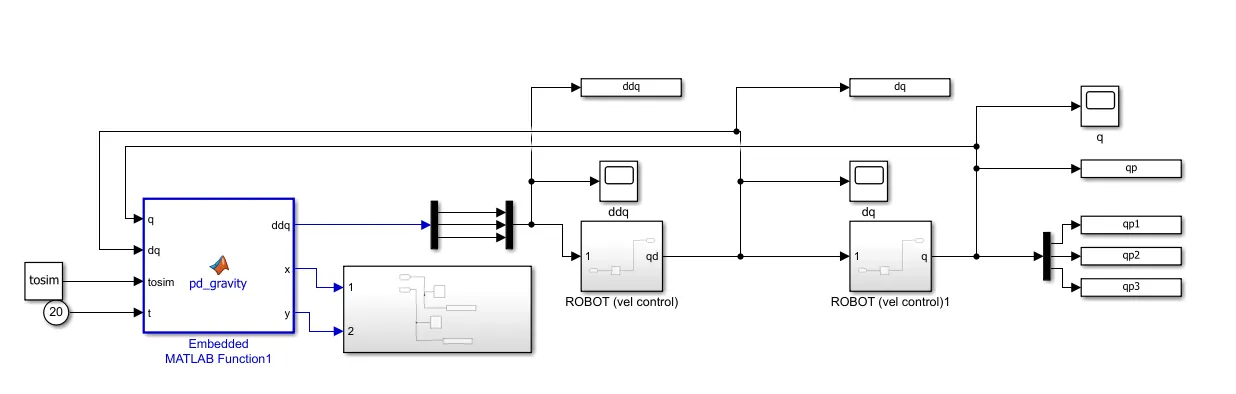

Simulation Results

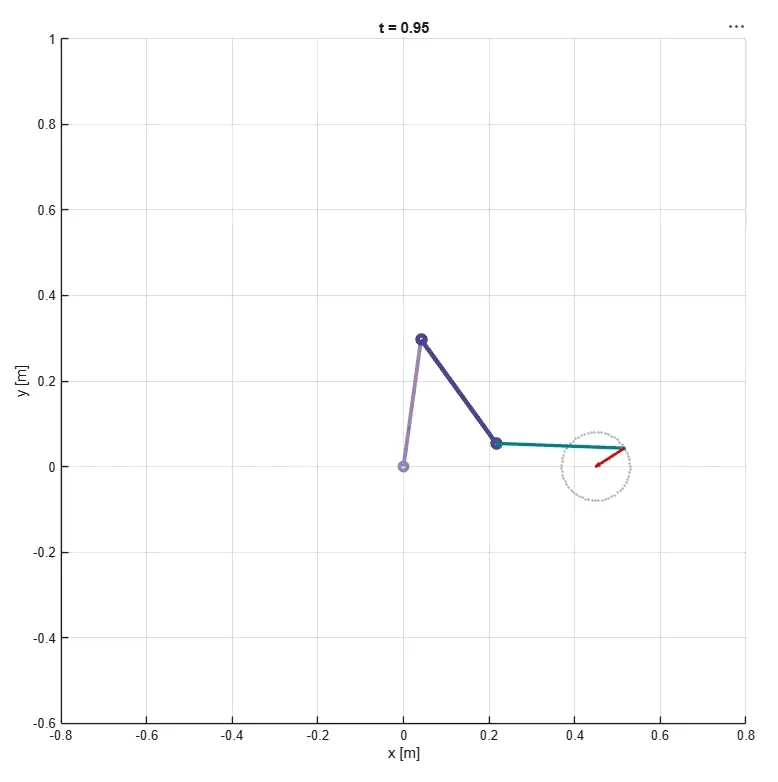

End-effector position: Start position: Stable trajectory:

GIF:

3. Realize in jointspace

Define the task space trajectory, end-effector is in Cartesian plane over time:

• Desired Position: $X_d(t) = [x_d(t), y_d(t), \phi_d(t)]^T$
• Desired Velocity: $\dot{X}_d(t) = [\dot{x}_d(t), \dot{y}_d(t), \dot{\phi}_d(t)]^T$

At every time step of the control loop, feed the desired Cartesian position $X_d(t)$ into the analytical geometric Inverse Kinematics equations. For a 3-Dof planar arm, this maps $(x,y)$ coordinate and orientation angle $\theta$ back to the specific joint angles:

$$q_d(t) = \text{IK}(X_d(t))$$

Use Jacobian matrix $J(q)$ to get teh target joint velocities($\dot{q}_d$) without introducing numerical lag from finite-differencing $q_d$.

$$\dot{X} = J(q)\dot{q}$$ $$\dot{q}_d(t) = J^{-1}(q_d) \dot{X}_d(t)$$

Then feed into the existing joint space controller.

$$\tau = K_p (q_d(t) - q) + K_d (\dot{q}_d(t) - \dot{q}) + G(q)$$
